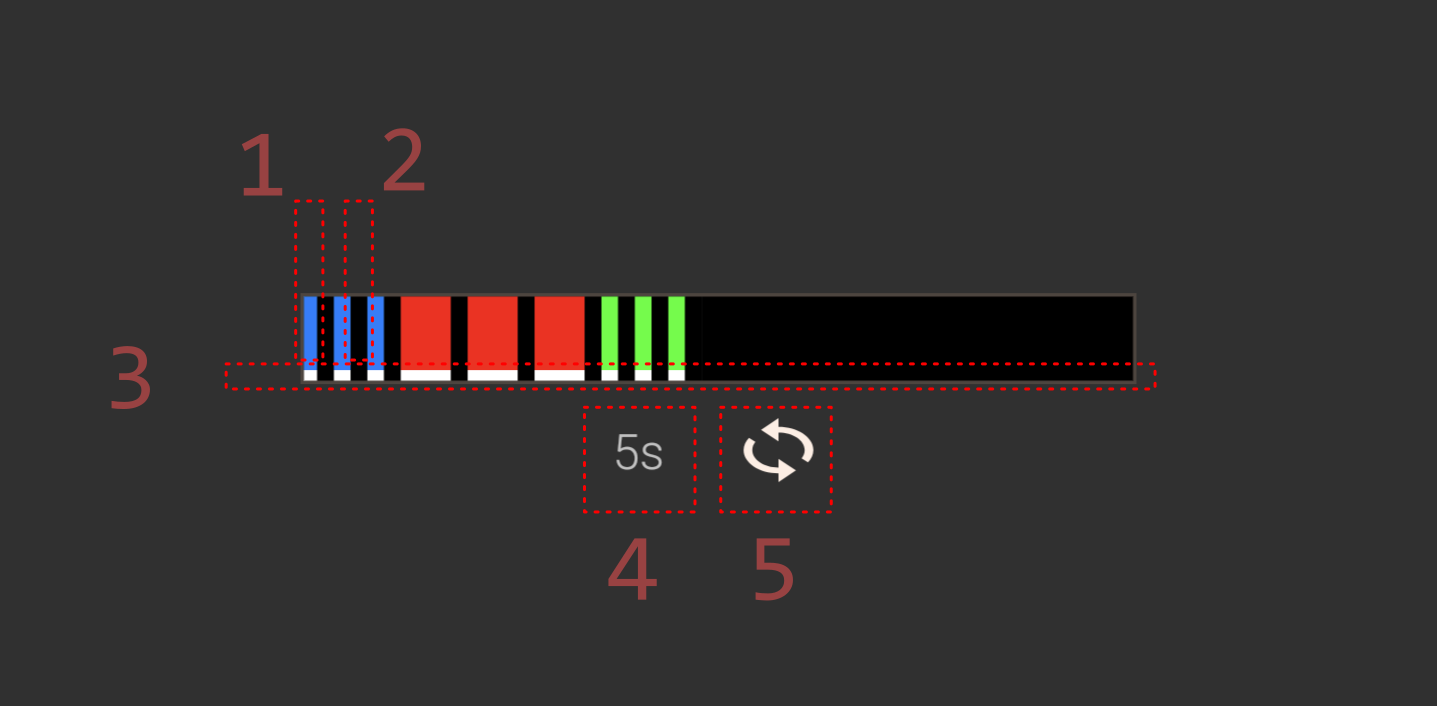

Light characteristics shows the flash on colors and flash off colors for an activated item relative to one cycle.

① Flash on color.

② Flash off color, usually black.

③ Flash spans. Flash on spans are displayed in white color while flash off spans are displayed in black color.

④ Total duration in seconds for one cycle of a strobe/interval activated item.

⑤ Number of cycles to play for a strobe/interval activated item.

• Infinite. No limit on the number of cycles to play.
• 1, 2, 3, etc. Play is stopped after the number of cycles played is reached.
• Opens Number of cycles dialog to allow entering a custom number of cycles to play.

Tap on the infinite icon to select an infinite number of cycles (default) to play or a select a specific number of cycles to play. A strobe/interval activated item stops playing after the number of cycles to play, if any, is reached. When the number of cycles is not infinite, the number of cycles works similar to a timer except that it uses the number of cycles played rather than the equivalent time duration.
